Adapter for Terminate Production
P/N
Description / Socket Type
Support List
LVT-128K18-56U
56 pin uBGA (9mm x 11mm, Pitch 0.75mm) adapter for Intel GE28F128K18
Open-Top
Socket

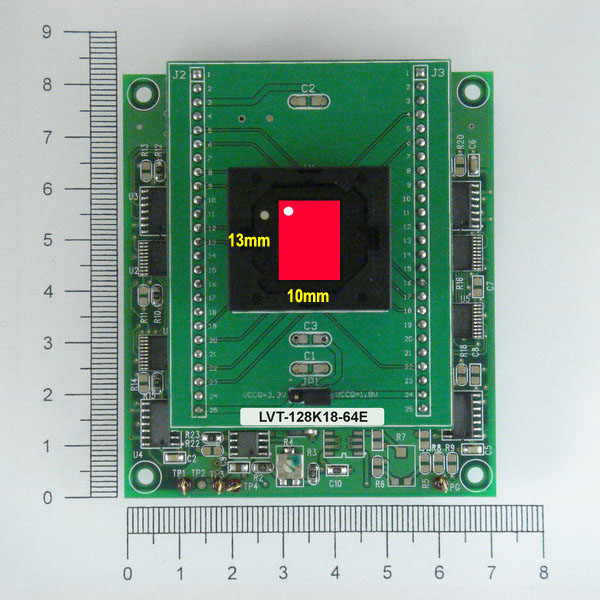

LVT-128K18-64E
64 pin EBGA (10mm x 13mm, Pitch 1.0mm) adapter for Intel RC28F128K18
Open-Top
Socket
LVT-128K3-56U
56 pin uBGA (9mm x 11mm, Pitch 0.75mm) adapter for Intel GE28F128K3
Open-Top
Socket

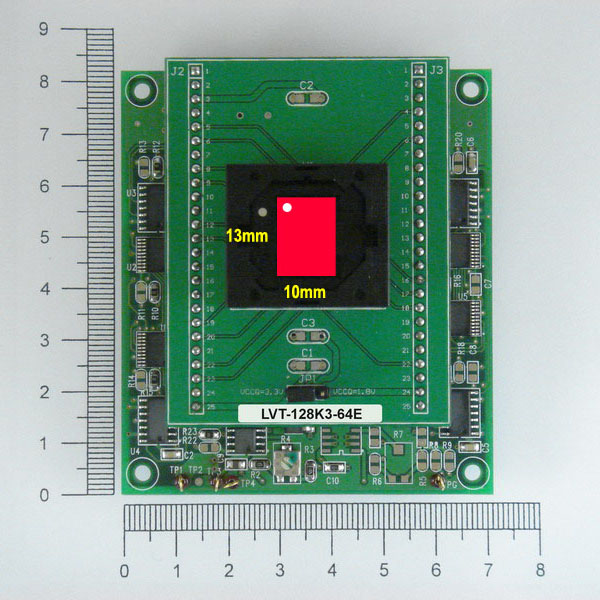

LVT-128K3-64E
64 pin EBGA (10mm x 13mm, Pitch 1.0mm) adapter for Intel RC28F128K3/640K3
Open-Top
Socket

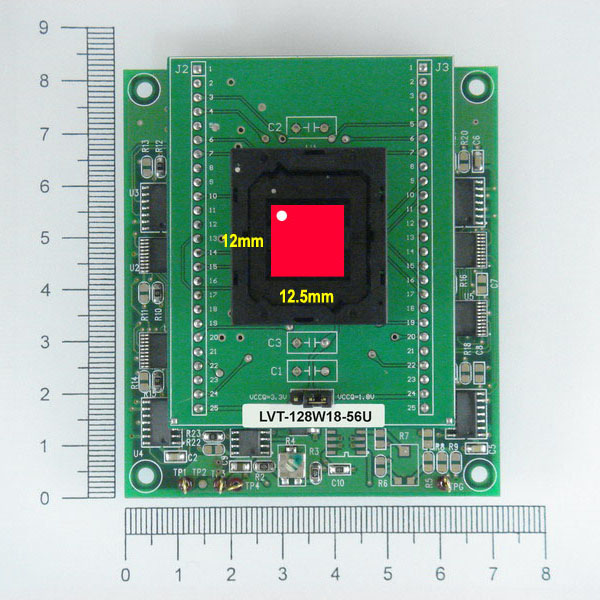

LVT-128W18-56U
56 pin uBGA (12mm x 12.5mm, Pitch 0.75mm) adapter for Intel GE28F128W18
Open-Top
Socket
LVT-128W30-56U
56 pin uBGA (12mm x 12.5mm, Pitch 0.75mm) adapter for Intel GE28F128W30
Open-Top
Socket

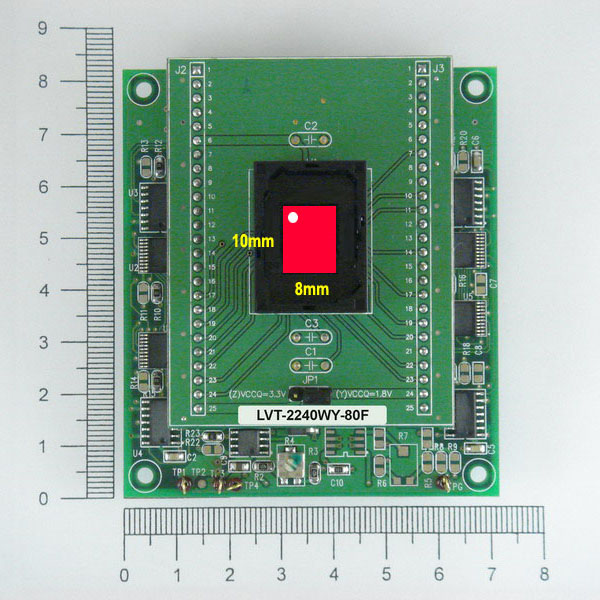

LVT-2240WY-80F
80 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter for Intel RD38FxxxxWY
Open-Top
Socket
LVT-2240WY-80FC
80 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter for Intel RD38FxxxxWY
Clam-Shell
Socket

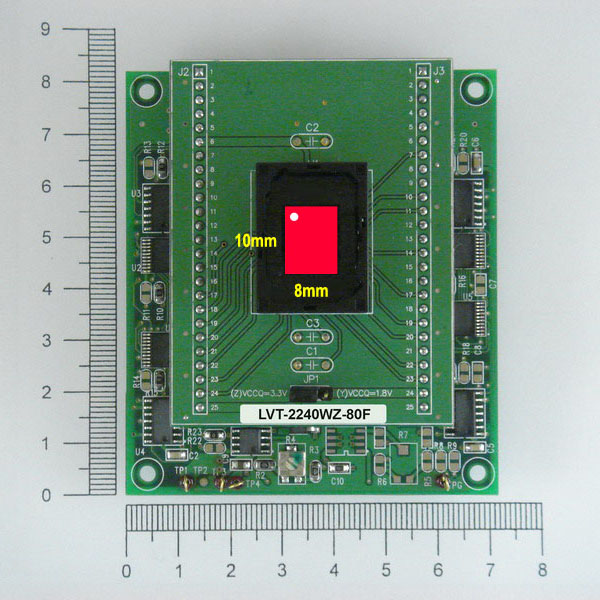

LVT-2240WZ-80F
80 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter for Intel RD38FxxxxWZ
Open-Top
Socket
LVT-2240WZ-80FC
80 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter for Intel RD38FxxxxWZ
Clam-Shell
Socket

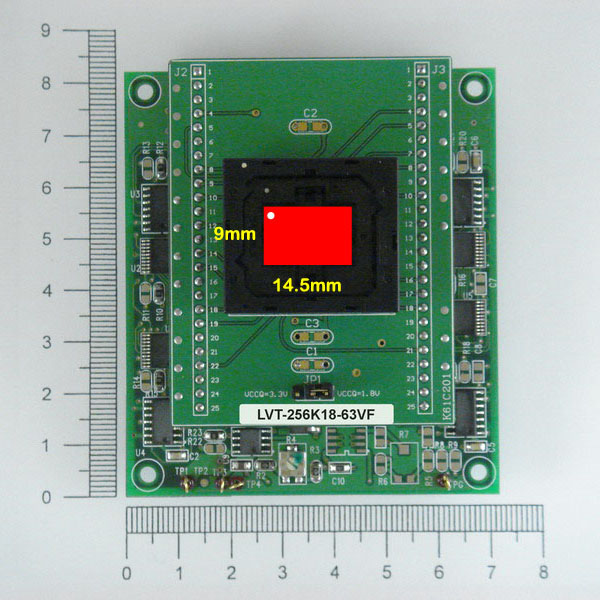

LVT-256K18-63VF
63 pin VFBGA (9mm x 14.5mm, Pitch 0.75mm) adapter for Intel GE28F256K18C
Open-Top
Socket

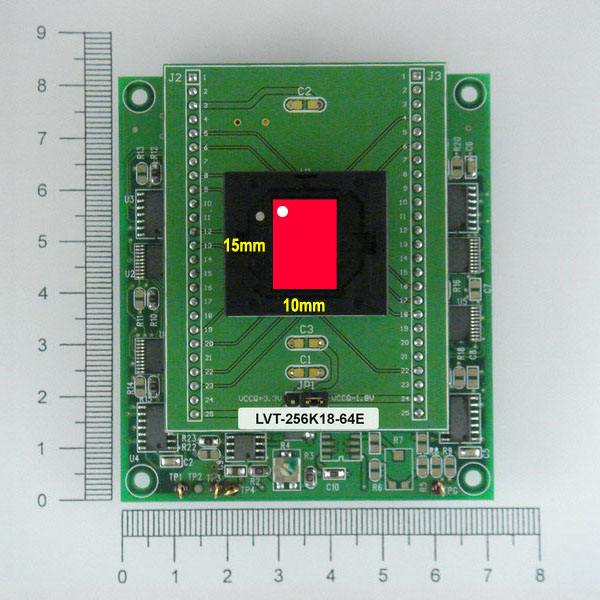

LVT-256K18-64E
64 pin EBGA (10mm x 15mm, Pitch 1.0mm) adapter for Intel RC28F256K18C
Open-Top
Socket

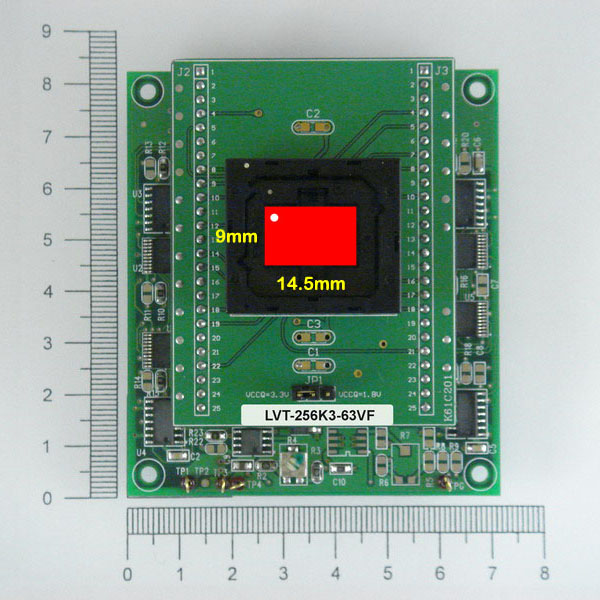

LVT-256K3-63VF
63 pin VFBGA (9mm x 14.5mm, Pitch 0.75mm) adapter for Intel GE28F256K3C
Open-Top
Socket

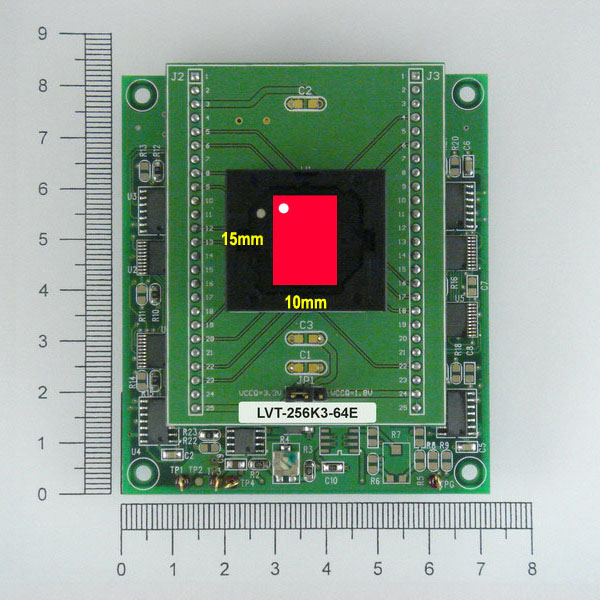

LVT-256K3-64E
64 pin EBGA (10mm x 15mm, Pitch 1.0mm) adapter for Intel RC28F256K3C
Open-Top
Socket
LVT-320D18-56U
56 pin uBGA (7.52mm x 13.42mm, Pitch 0.75mm) adapter for Intel 28F320D18
Open-Top
Socket
LVT-4050LY-80F
80 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter for Intel RD38F4050L0YB/T
Open-Top
Socket
LVT-4050LZ-80F
80 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter for Intel RD38F4050L0ZB/T
Open-Top
Socket

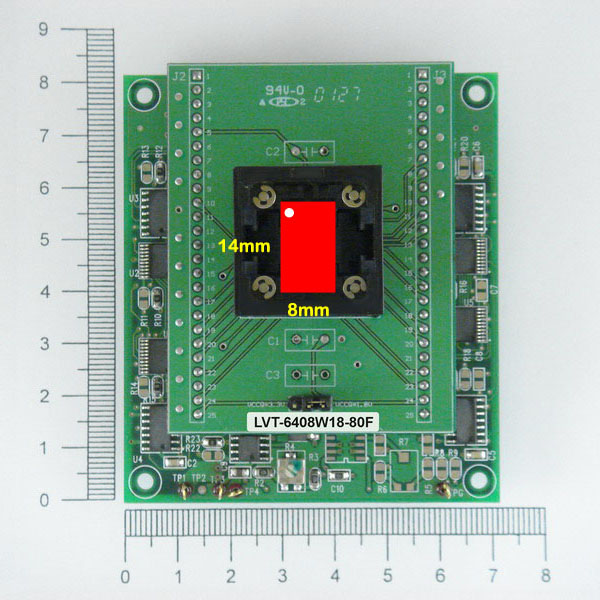

LVT-6408W18-80F
80 pin FBGA (8mm x 14mm, Pitch 0.8mm) adapter for Intel 28F6408W18
Open-Top
Socket

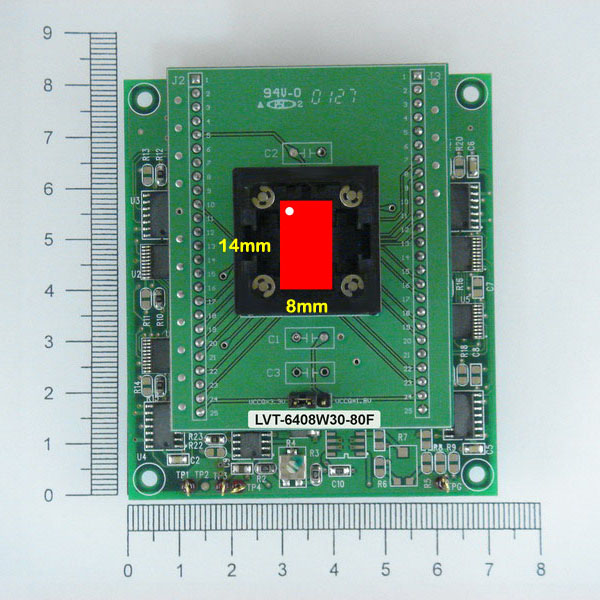

LVT-6408W30-80F
80 pin FBGA (8mm x 14mm, Pitch 0.8mm) adapter for Intel 28F6408W30
Open-Top
Socket

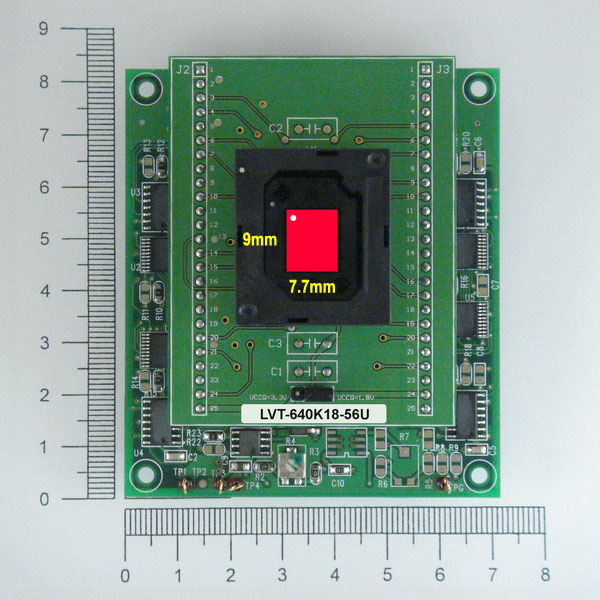

LVT-640K18-56U
56 pin uBGA (7.7mm x 9mm, Pitch 0.75mm) adapter for Intel GE28F640K18C
Open-Top
Socket

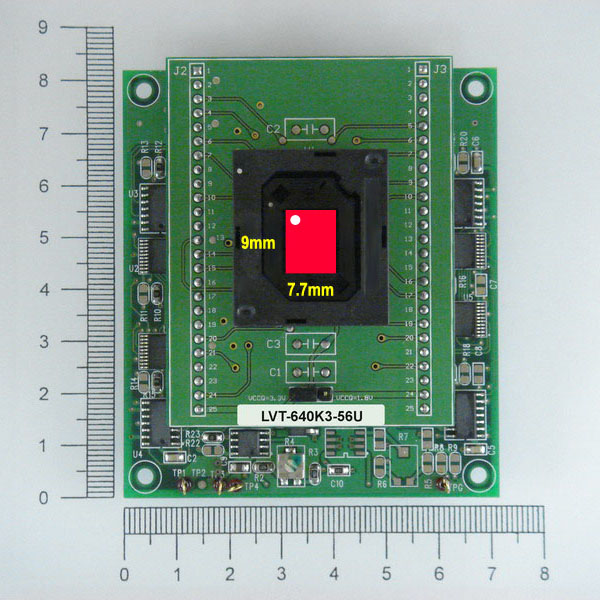

LVT-640K3-56U
56 pin uBGA (7.7mm x 9mm, Pitch 0.75mm) adapter for Intel GE28F640K3C
Open-Top
Socket

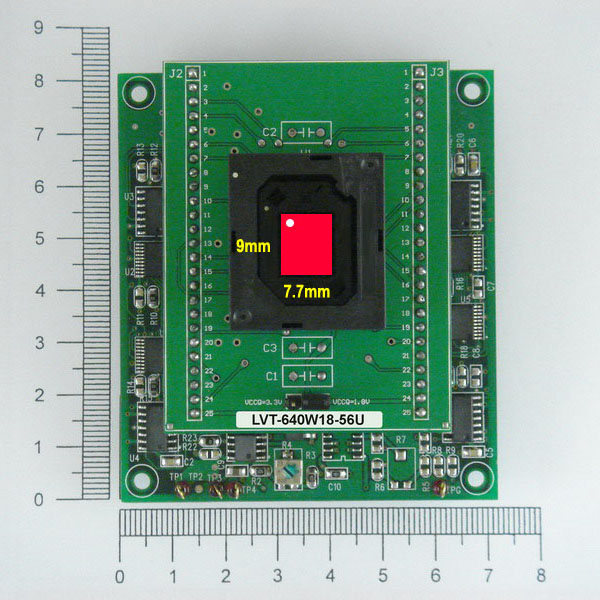

LVT-640W18-56U
56 pin uBGA (7.7mm x 9mm, Pitch 0.75mm) adapter for Intel 28F320/640/128 W18
Open-Top
Socket

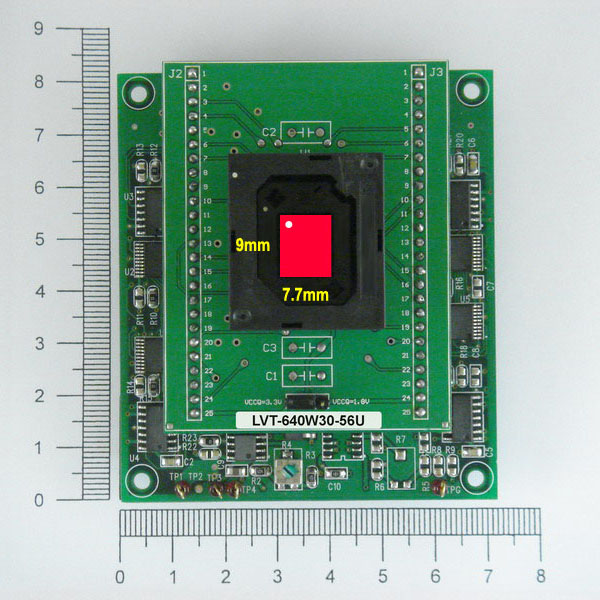

LVT-640W30-56U
56 pin uBGA (7.7mm x 9mm, Pitch 0.75mm) adapter for Intel 28F320/640 W30
Open-Top
Socket

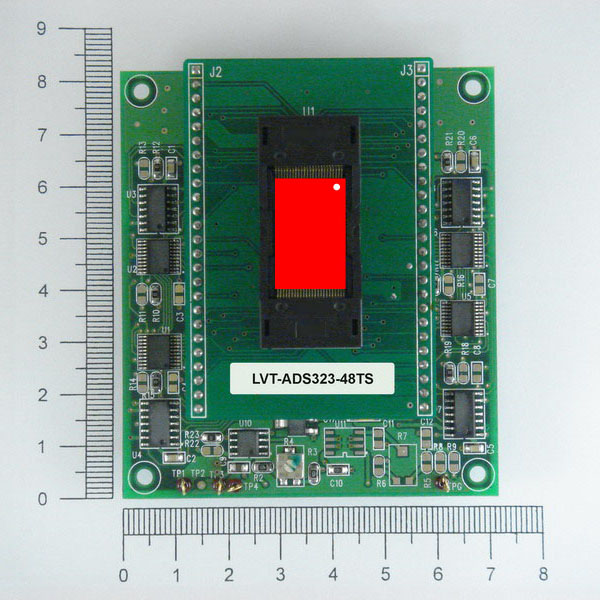

LVT-ADS323-48TS
48 pin TSOP (12mm x 20mm, Pitch 0.5mm) adapter for AMD 29DS32x
Open-Top
Socket

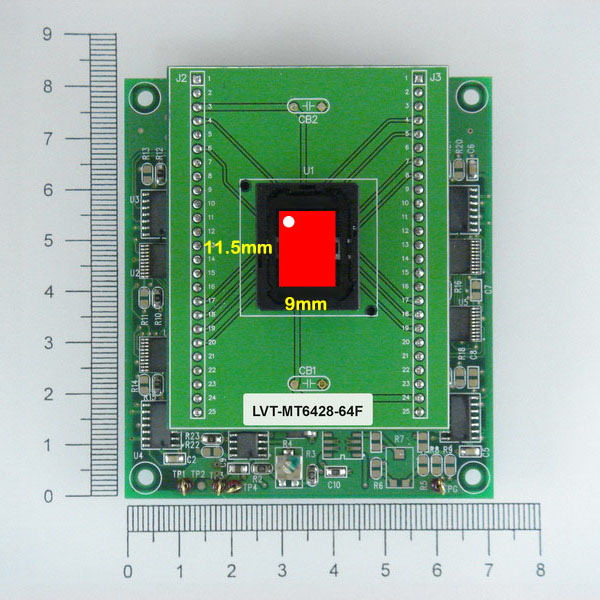

LVT-MT6428-64F
64 pin FBGA (9mm x 11.5mm, Pitch 0.8mm) adapter for Micron MT28C6428P20/P18
Open-Top
Socket

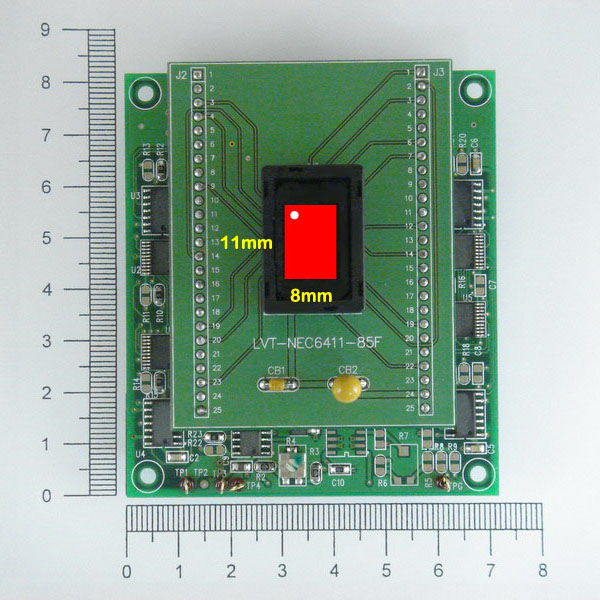

LVT-NEC6411-85F
85 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter for NEC uPD29F064115F9
Open-Top
Socket

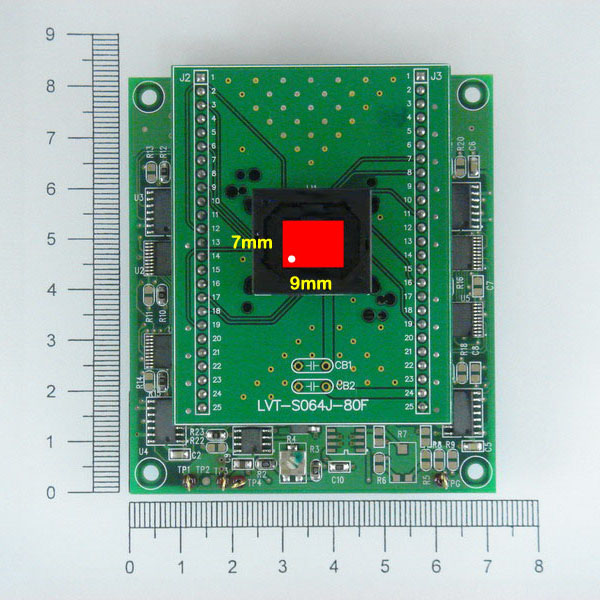

LVT-S064J-80F
80 pin FBGA (7mm x 9mm, Pitch 0.8mm) adapter for Spansion S71WS064JB0B0FW2Y
Open-Top
Socket
LVT-SST400-48WF
48 pin WFBGA (4mm x 6mm, Pitch 0.5mm) adapter for SST 39WF400A
Clam-Shell
Socket
LVT-ST432-64F
64 pin FBGA (8mm x 12mm, Pitch 0.8mm) adapter for ST M36DR432A/B
Open-Top
Socket
PLCC4428-01
44 pin PLCC (Pitch 1.27mm) adapter for AMD MACH 110 / 210 / 215 (Phase Out)

Socket
PLCC4428-02
44 pin PLCC (Pitch 1.27mm) adapter for Lattice ispLSI1016 / pLSI1016 (Phase Out)

Socket

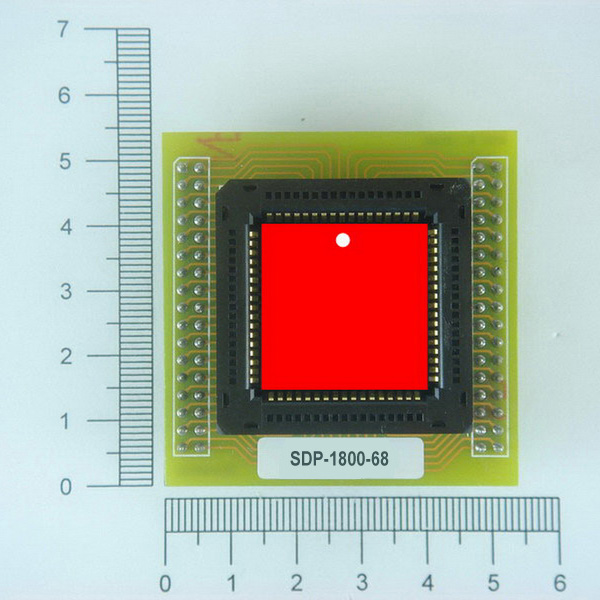

SDP-1800-68
68 pin PLCC (Pitch 1.27mm) adapter for Altera EP18xx (Phase Out)
Open-Top
Socket
SDP-3108-100
100 pin QFP (Body Size 14mm x 20mm, Pitch 0.65mm) adapter for Xilinx XC73108 (Phase Out)
Clam-Shell
Socket
SDP-3108-84
84 pin PLCC (Pitch 1.27mm) adapter for Xilinx XC73108 (Phase Out)
Open-Top
Socket
SDP-5000-68
68 pin PLCC (Pitch 1.27mm) adapter for Atmel ATV5000 (Phase Out)
Open-Top
Socket
SDP-5128-68
68 pin PLCC (Pitch 1.27mm) adapter for Altera EPM5128 (Phase Out)
Open-Top
Socket
SDP-7272-68
68 pin PLCC (Pitch 1.27mm) adapter for Xilinx XC7272/A (Phase Out)
Open-Top
Socket
SDP-7272-84
84 pin PLCC (Pitch 1.27mm) adapter for Xilinx XC7272/A (Phase Out)
Open-Top
Socket
SDP-7354-68
68 pin PLCC (Pitch 1.27mm) adapter for Xilinx XC7354 (Phase Out)
Open-Top
Socket
SDP-7372-68
68 pin PLCC (Pitch 1.27mm) adapter for Xilinx XC7372 (Phase Out)
Open-Top
Socket

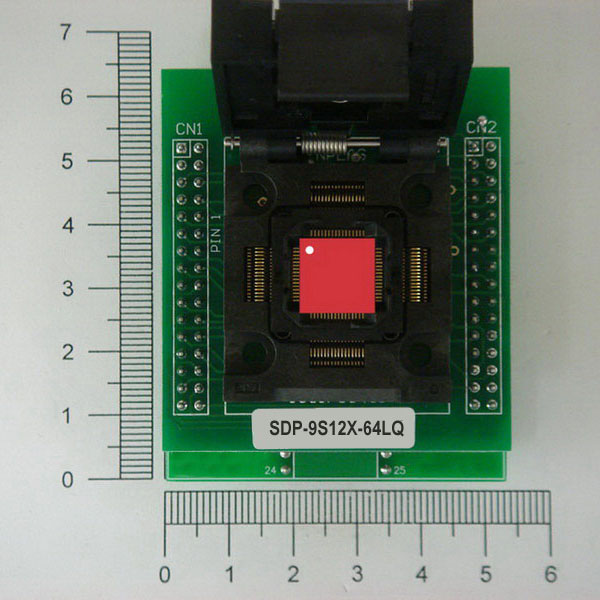

SDP-9S12X-64LQ
64 pin LQFP (Body Size 10mm x 10mm, Pitch 0.5mm) adapter for Freescale MC9S12XS64
Clam-Shell
Socket
SDP-C374-84
84 pin PLCC (Pitch 1.27mm) adapter for Cypress 7C374/373 (Phase Out)
Open-Top
Socket
SDP-d160-48U
48 pin FBGA (9mm x 9mm, Pitch 0.8mm) adapter for Samsung KM28DU160T/B (Phase Out)
Open-Top
Socket

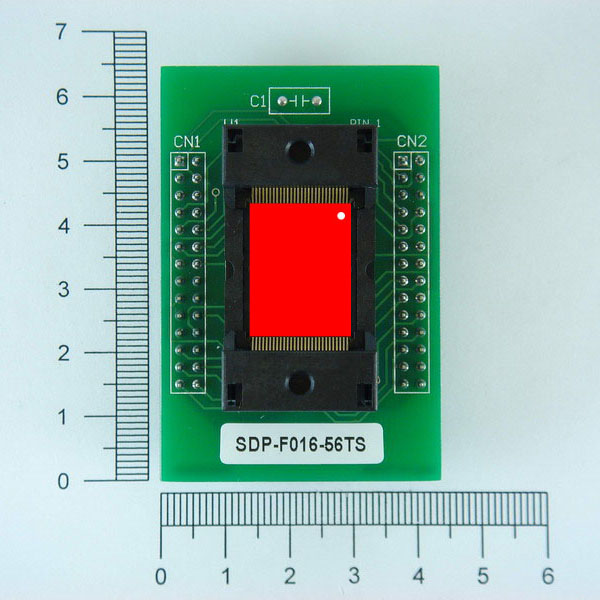

SDP-F016-56TS
56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter for Intel 28F016/032 (Phase Out)
Open-Top
Socket
SDP-FU160-46SON
46 pin SON (10mm x 12mm, Pitch 0.5mm) adapter for Fujitsu MBM29LV160T/B (Phase Out)
Open-Top
Socket
SDP-I008-40U
40 pin uBGA (5.74mm x 7.48mm, Pitch 0.75mm) adapter for Intel GT28F008SC/S3/S5 (Phase Out)
Open-Top
Socket
SDP-I008-48U
48 pin uBGA (6.5mm x 7.91mm, Pitch 0.75mm) adapter for Intel GT28F008B3B/T (Phase Out)
Open-Top
Socket
SDP-I016-40U
40 pin uBGA (5.74mm x 7.48mm, Pitch 0.75mm) adapter for Intel GT28F016SC/S3/S5 (Phase Out)
Open-Top
Socket
SDP-I016-48U
48 pin uBGA (7.58mm x 9.81mm, Pitch 0.75mm) adapter for Intel GT28F016B3B/T (Phase Out)
Open-Top
Socket
SDP-I160-48U
48 pin uBGA (7.58mm x 9.81mm, Pitch 0.75mm) adapter for Intel GT28F160B3B/T (Phase Out)
Open-Top
Socket
SDP-I800-48U
48 pin uBGA (6.5mm x 7.91mm, Pitch 0.75mm) adapter for Intel GT28F800B3B/T (Phase Out)
Open-Top
Socket
SDP-M160-48U
48 pin uBGA (7mm x 8mm, Pitch 0.75mm) adapter for Micron 28F160A3, C3FD (Phase Out)
Open-Top
Socket
SDP-M5-100Q(CIC)
100 pin QFP (Body Size 14mm x 20mm, Pitch 0.65mm) adapter for AMD MACH5(LV)-xxx/68 (Phase Out)

Socket
SDP-M5-100TQ(CIC)
100 pin TQFP (Body Size 14mm x 14mm, Pitch 0.5mm) adapter for AMD MACH5(LV)-xxx/68 (Phase Out)

Socket
SDP-M5-144QF(CIC)
144 pin TQFP (Body Size 28mm x 28mm, Pitch 0.65mm) adapter for AMD MACH5(LV)-xxx/104 (Phase Out)

Socket
SDP-M5-160QF(CIC)
160 pin PQFP (Body Size 28mm x 28mm, Pitch 0.65mm) adapter for AMD MACH5(LV)-xxx/120 (Phase Out)

Socket
SDP-M5-208Q(CIC)
208 pin PQFP (Body Size 28mm x 28mm, Pitch 0.5mm) adapter for AMD MACH5(LV)-xxx/160 (Phase Out)

Socket
SDP-UNIV-28SO/330
28 pin SOIC (Body Width 330mil, Pitch 1.27mm) universal adapter (Phase Out)
Clam-Shell
Socket
SDP-X740-68
68 pin PLCC (Pitch 1.27mm) adapter for Altera EPX740 / Intel iFX740 (Phase Out)

Socket
SDP-X780-84
84 pin PLCC (Pitch 1.27mm) adapter for Altera EPX780 / Intel iFX780 (Phase Out)
Open-Top
Socket
