支援 LT-T400 系列的轉接座

支援 LabTool-T400 系列的轉接座

轉接座規格列表 (PDF檔)

轉接座名稱

說明 / 轉接頭型式

封裝尺寸 (BGA)

圖片

TM-A160-48F

48 pin FBGA (8mm x 9mm, Pitch 0.8mm) adapter modules for AMD Am29LV160B

Open-Top
Socket

8mm x 9mm
Pitch=0.8mm

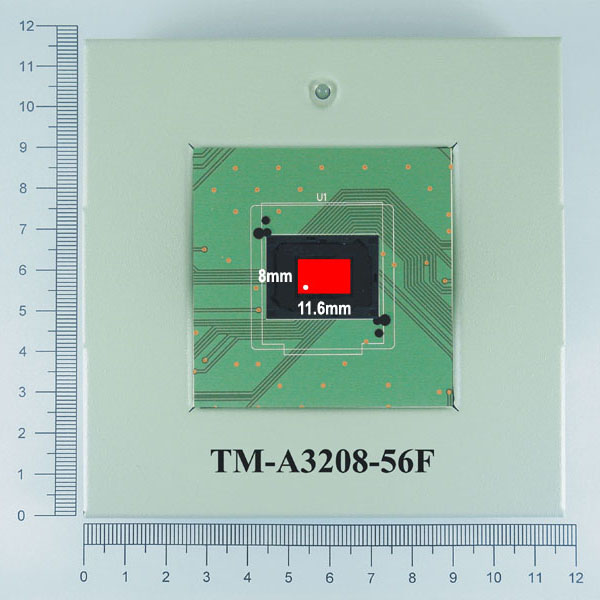

TM-A3208-56F

56 pin FBGA (8mm x 11.6mm, Pitch 0.8mm) adapter modules for AMD 42DL32XX MCP

Open-Top
Socket

8mm x 11.6mm
Pitch=0.8mm

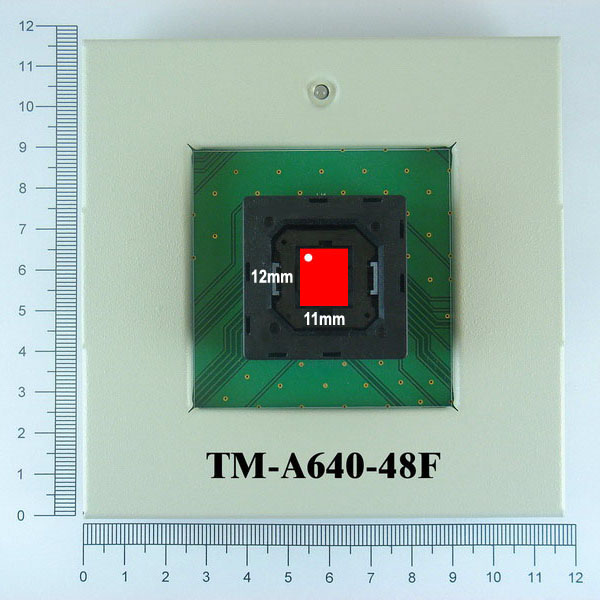

TM-A640-48F

48 pin FBGA (11mm x 12mm, Pitch 0.8mm) adapter modules for AMD 29DL640D

Open-Top
Socket

11mm x 12mm
Pitch=0.8mm

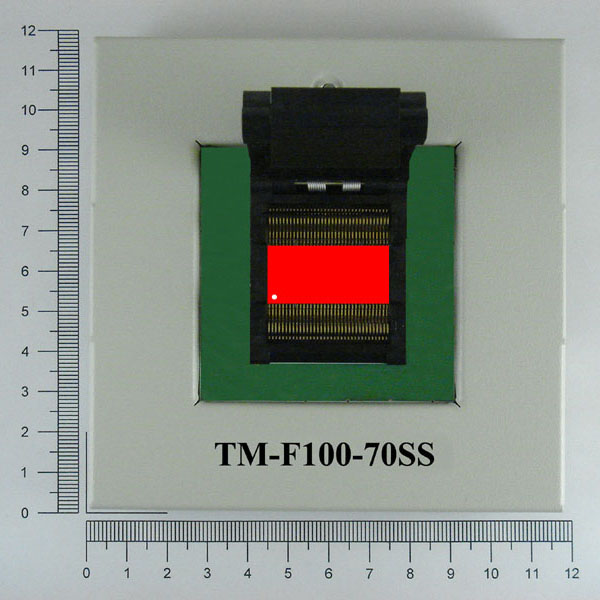

TM-F100-70SS

70 pin SSOP (Body Width 12.8mm, Pitch 0.8mm) adapter modules for Fujitsu MSP55LV100

Clam-Shell
Socket

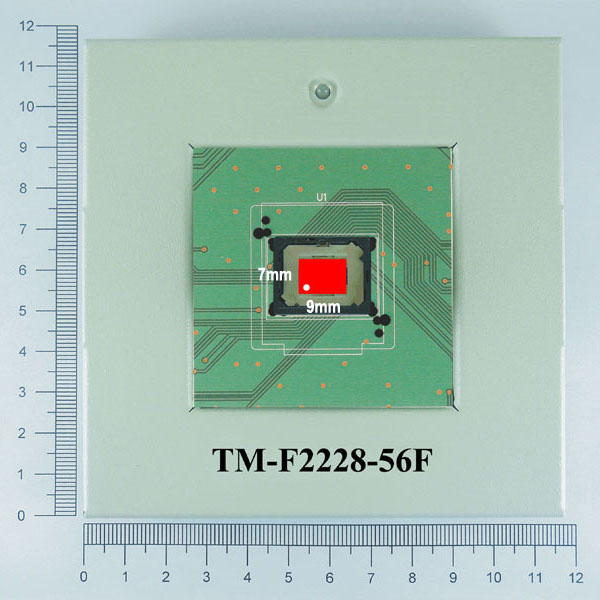

TM-F2228-56F

56 pin FBGA (7mm x 9mm, Pitch 0.8mm) adapter modules for Fujitsu MB84VD22280F

Open-Top
Socket

7mm x 9mm
Pitch=0.8mm

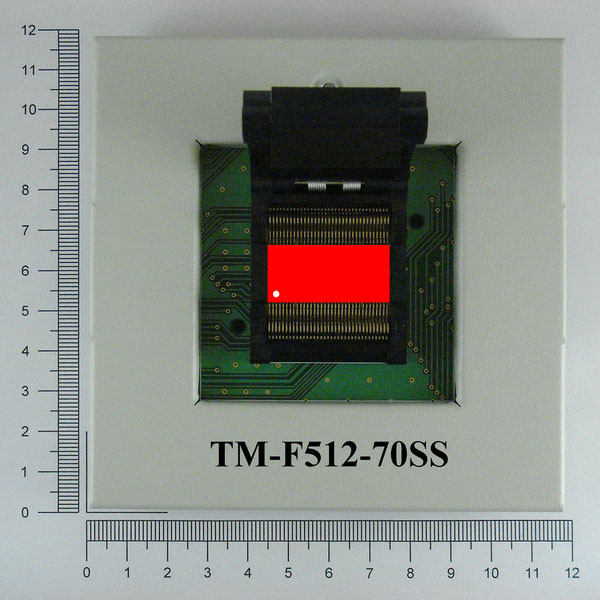

TM-F512-70SS

70 pin SSOP (Body Width 12.8mm, Pitch 0.8mm) adapter modules for Fujitsu MSP55LV512

Clam-Shell
Socket

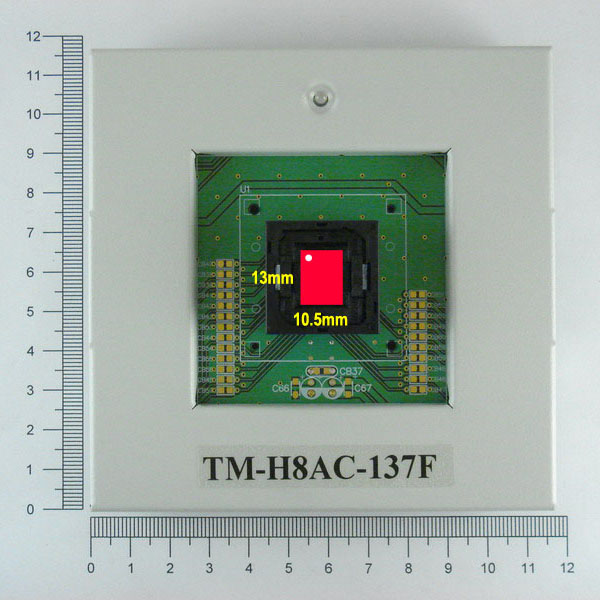

TM-H8AC-137F

137 pin FBGA (10.5mm x 13mm, Pitch 0.8mm) adapter modules for Hynix H8ACS0SJ0MCP

Open-Top
Socket

10.5mm x 13mm
Pitch=0.8mm

TM-H8BC-149F

149 pin FBGA (10mm x 14mm, Pitch 0.8mm) adapter modules for Hynix H8BCS0S(Q)I0MAP

Open-Top
Socket

10mm x 14mm
Pitch=0.8mm

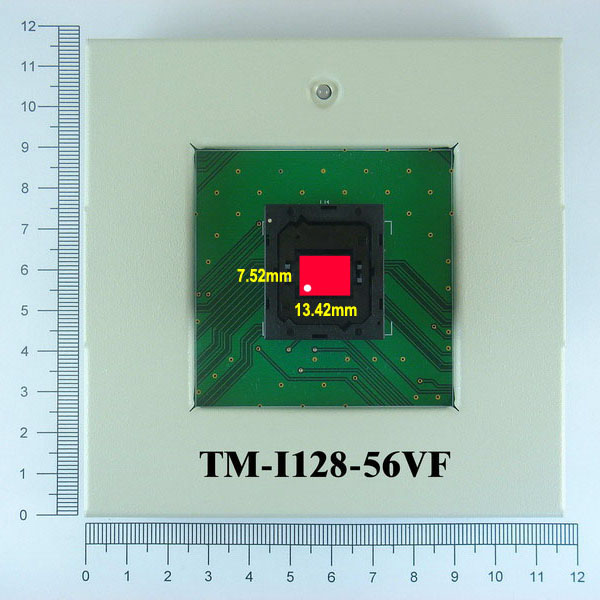

TM-I128-56VF

56 pin VFBGA (7.52mm x 13.42mm, Pitch 0.75mm) adapter modules for Intel GE28F128K/WxD

Open-Top
Socket

7.52mm x 13.42mm
Pitch=0.75mm

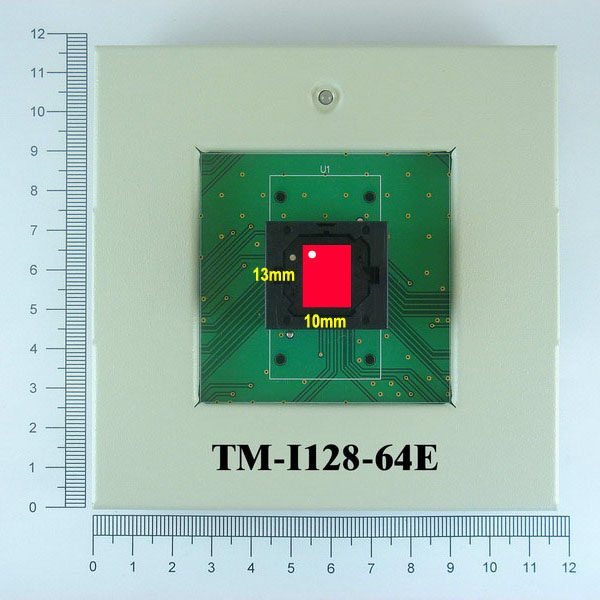

TM-I128-64E

64 pin EBGA (10mm x 13mm, Pitch 1.0mm) adapter modules for Intel RC28F128K3/J3

Open-Top
Socket

10mm x 13mm
Pitch=1.0mm

TM-I128W-56VF

56 pin VFBGA (12mm x 12.5mm, Pitch 0.75mm) adapter modules for Intel 28F128W18, 30 T/B

Open-Top
Socket

12mm x 12.5mm
Pitch=0.75mm

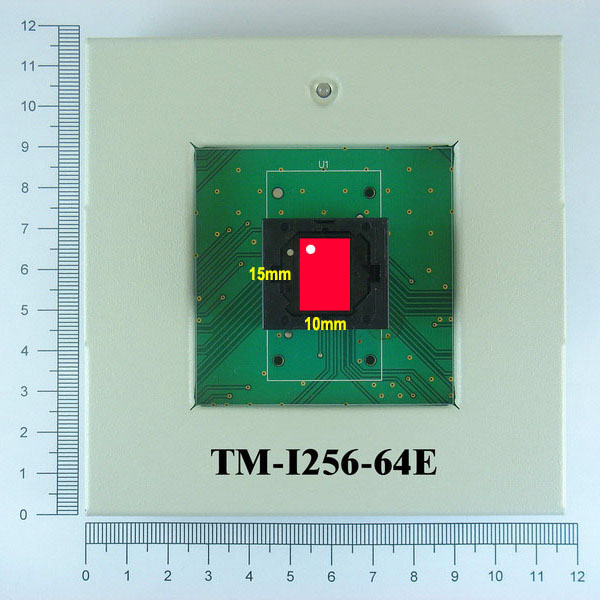

TM-I256-64E

64 pin EBGA (10mm x 15mm, Pitch 1.0mm) adapter modules for Intel 28F256J3C

Open-Top
Socket

10mm x 15mm
Pitch=1.0mm

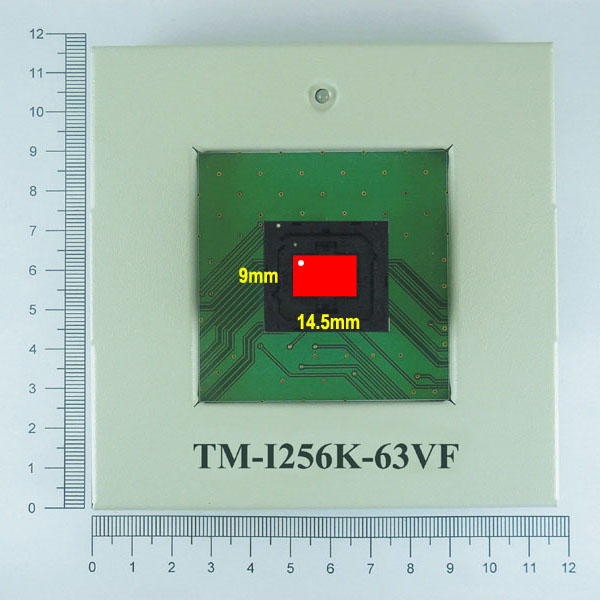

TM-I256K-63VF

63 pin VFBGA (9mm x 14.5mm, Pitch 0.75mm) adapter modules for Intel GE28F256K

Open-Top
Socket

9mm x 14.5mm
Pitch=0.75mm

TM-I256L-63VF

63 pin VFBGA (9mm x 11mm, Pitch 0.75mm) adapter modules for Intel GE28F256L

Open-Top
Socket

9mm x 11mm
Pitch=0.75mm

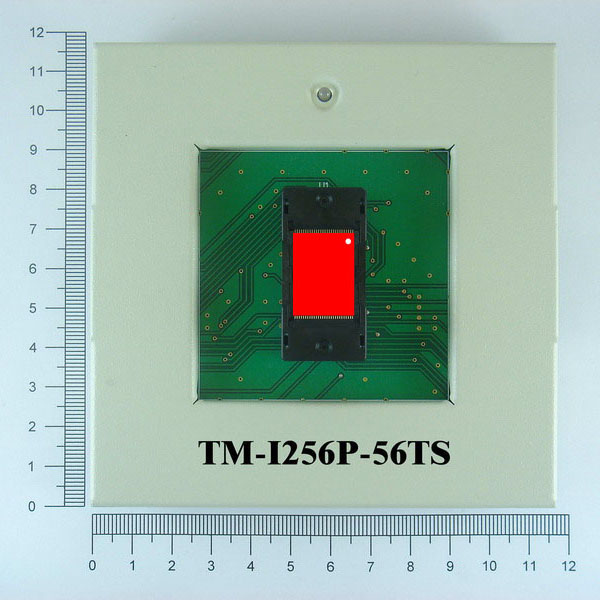

TM-I256P-56TS

56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter modules for Intel TE28F256P30BX585QS

Open-Top
Socket

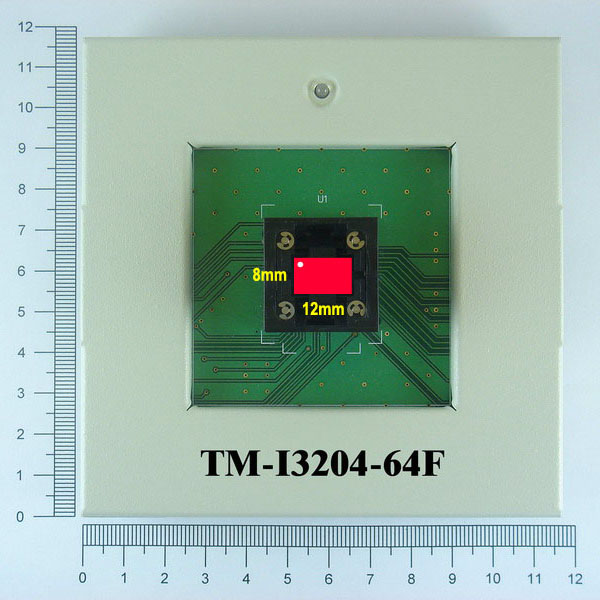

TM-I3204-64F

64 pin FBGA (8mm x 12mm, Pitch 0.8mm) adapter modules for ST M36Wxxxx

Open-Top
Socket

8mm x 12mm
Pitch=0.8mm

TM-I320-48U

48 pin uBGA (7.286mm x 10.85mm, Pitch 0.75mm) adapter modules for Intel GE28F320J3A

Open-Top
Socket

7.286mm x 10.85mm
Pitch=0.75mm

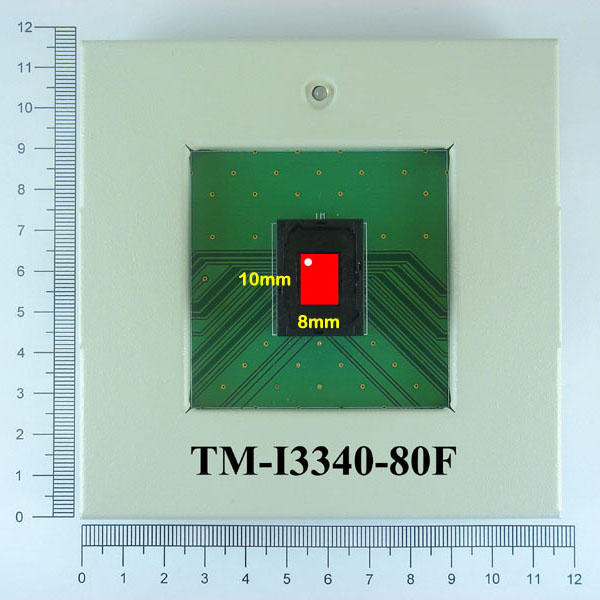

TM-I3340-80F

80 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for Intel RD38Fxxxx MCP

Open-Top
Socket

8mm x 10mm
Pitch=0.8mm

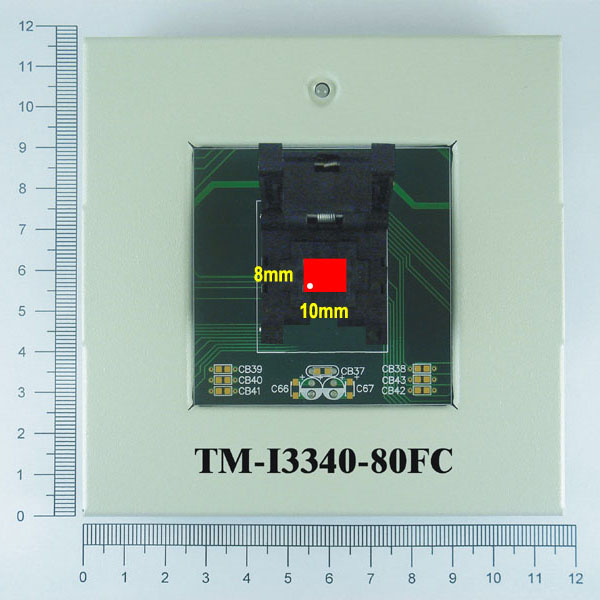

TM-I3340-80FC

80 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for Intel RD38Fxxxx MCP

Clam-Shell
Socket

8mm x 10mm
Pitch=0.8mm

TM-I4050-80F

80 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for Intel RD38F4050

Open-Top
Socket

8mm x 11mm
Pitch=0.8mm

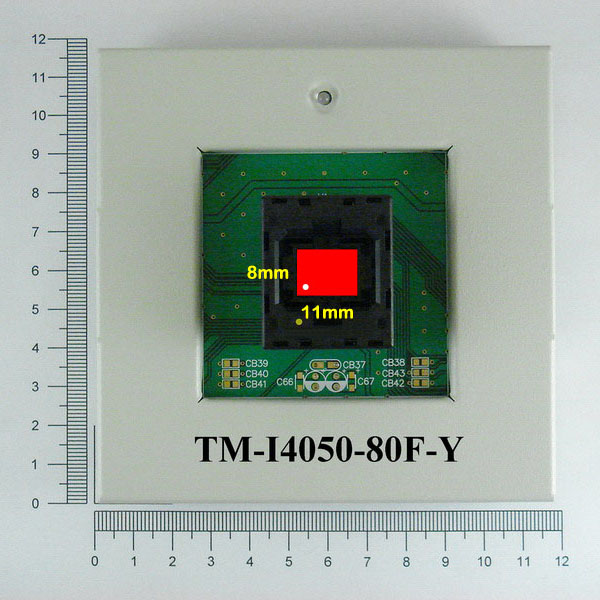

TM-I4050-80F-Y

80 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for Intel RD38F4050 (YAMAICHI Socket)

Open-Top
Socket

8mm x 11mm
Pitch=0.8mm

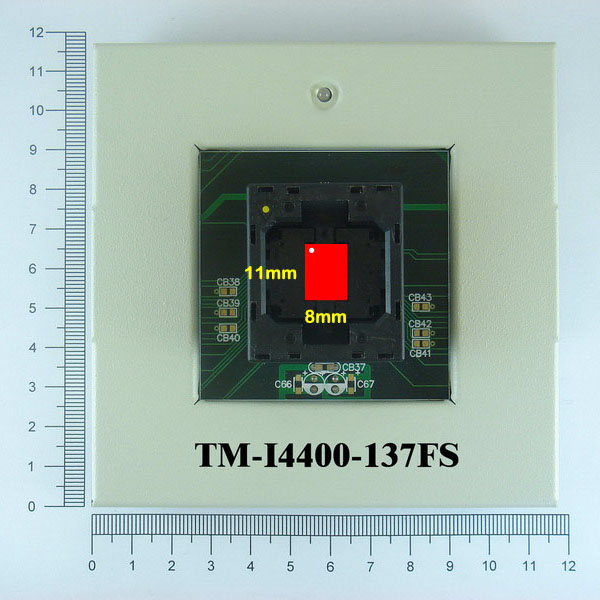

TM-I4400-137FS

137 pin FSBGA (8mm x 11mm, Pitch 0.65mm) adapter modules for Intel LZ48F4400

Open-Top
Socket

8mm x 11mm
Pitch=0.65mm

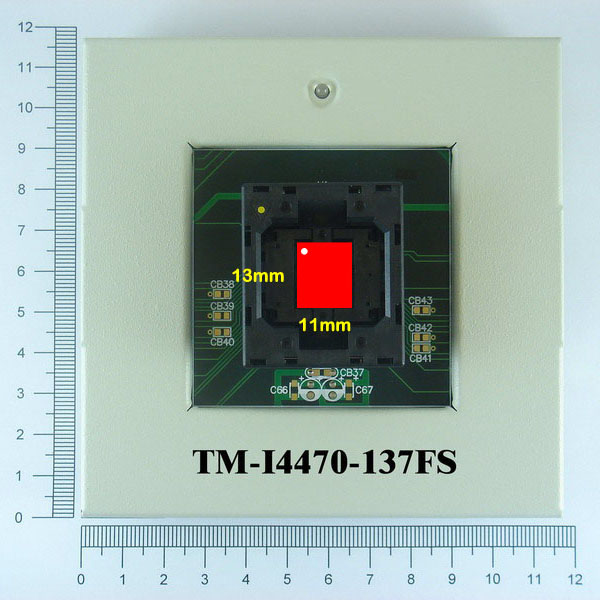

TM-I4470-137FS

137 pin FSBGA (11mm x 13mm, Pitch 0.65mm) adapter modules for Intel PF38F4470VVUB

Open-Top
Socket

11mm x 13mm
Pitch=0.65mm

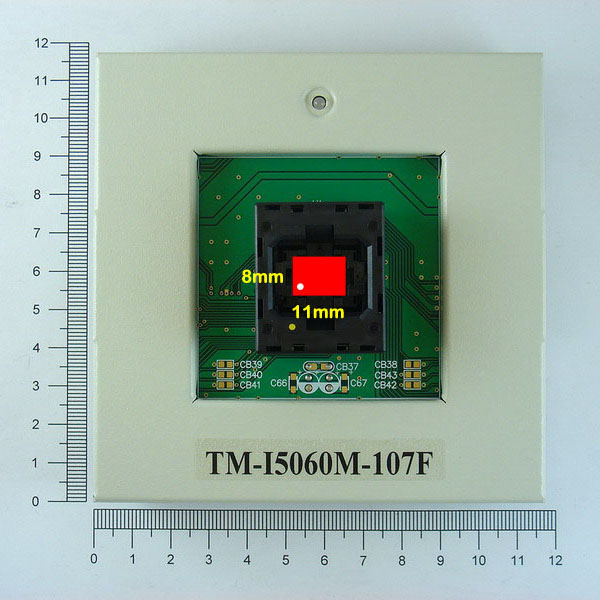

TM-I5060M-107F

107 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for Intel PF38F5060M0Y0

Open-Top
Socket

8mm x 11mm
Pitch=0.8mm

TM-I640-56SS

56 pin SSOP (Pitch 0.8mm) adapter modules for Intel 28F640/128J3

Open-Top
Socket

TM-I640-56VF

56 pin VFBGA (7.7mm x 9mm, Pitch 0.75mm) adapter modules for Intel 28F640W, 28F640K

Open-Top
Socket

7.7mm x 9mm
Pitch=0.75mm

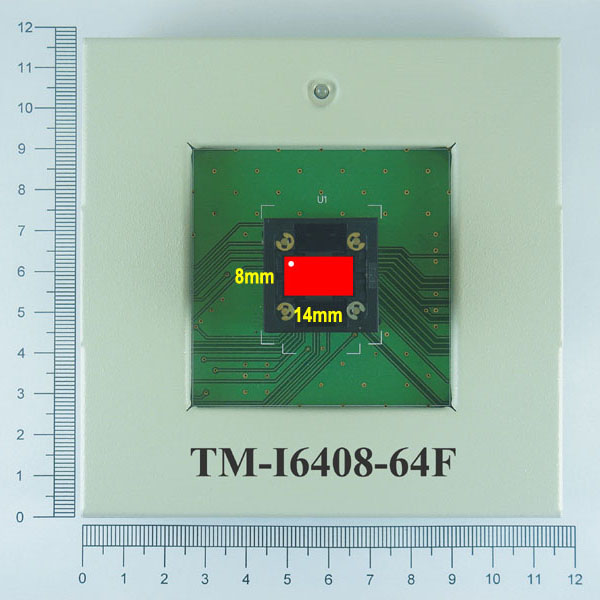

TM-I6408-64F

64 pin FBGA (8mm x 14mm, Pitch 0.8mm) adapter modules for Intel RD28F6408

Open-Top
Socket

8mm x 14mm
Pitch=0.8mm

TM-I640P-64E

64 pin EBGA (8mm x 10mm, Pitch 1.0mm) adapter modules for Intel PC28F640/128P33B85

Open-Top
Socket

8mm x 10mm
Pitch=1.0mm

TM-IPXA27-336FS

336 pin FSBGA (14mm x 14mm, Pitch 0.65mm) adapter modules for Intel PXA27xx

Open-Top
Socket

14mm x 14mm
Pitch=0.65mm

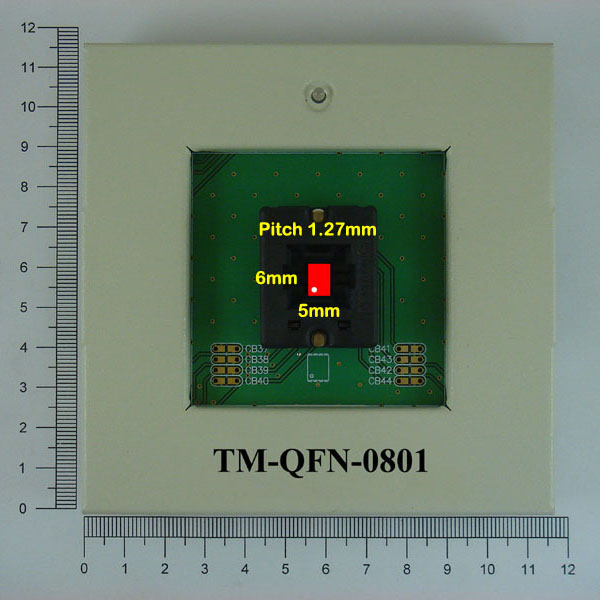

TM-QFN-0801

8 pin QFN (5mm x 6mm, Pitch 1.27mm) adapter modules for ST M25P80

Open-Top
Socket

TM-S064J-56F

56 pin FBGA (7mm x 9mm, Pitch 0.8mm) adapter modules for Spansion S71PL064JAO

Open-Top
Socket

7mm x 9mm
Pitch=0.8mm

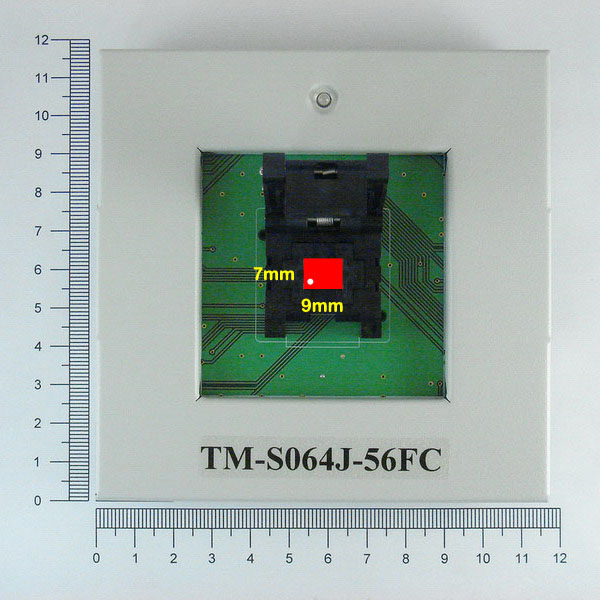

TM-S064J-56FC

56 pin FBGA (7mm x 9mm, Pitch 0.8mm) adapter modules for Spansion S71PL064JAO

Clam-Shell
Socket

7mm x 9mm
Pitch=0.8mm

TM-S127J-56TS

56 pin TSOP (14mm x 20mm, Pitch 0.5mm) adapter modules for Spansion S29PL127J/129J

Open-Top
Socket

TM-S254J-84F

84 pin FBGA (8mm x 11.6mm, Pitch 0.8mm) adapter modules for Spansion S71PL254J

Open-Top
Socket

8mm x 11.6mm
Pitch=0.8mm

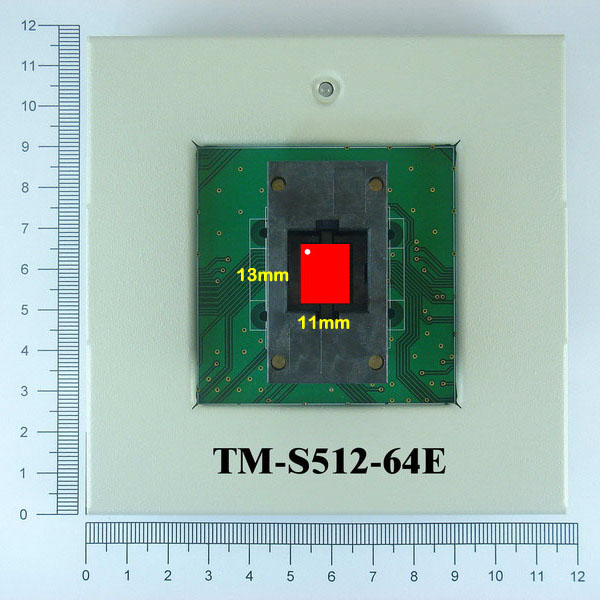

TM-S512-64E

64 pin EBGA (11mm x 13mm, Pitch 1.0mm) adapter modules for Spansion S29GL512N11FFIS20 (LAA)

Open-Top
Socket

11mm x 13mm
Pitch=1.0mm

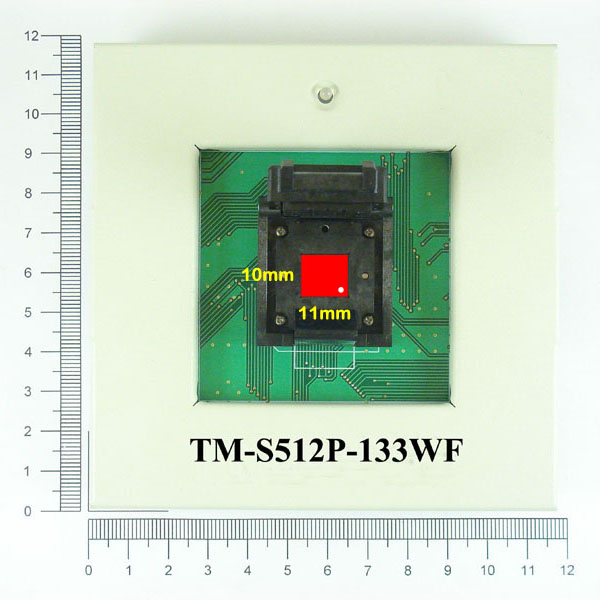

TM-S512P-133WF

133 pin WFBGA (10mm x 11mm, Pitch 0.5mm) adapter modules for Spansion S72NS512PE0AJGLG

Clam-Shell
Socket

10mm x 11mm
Pitch=0.5mm

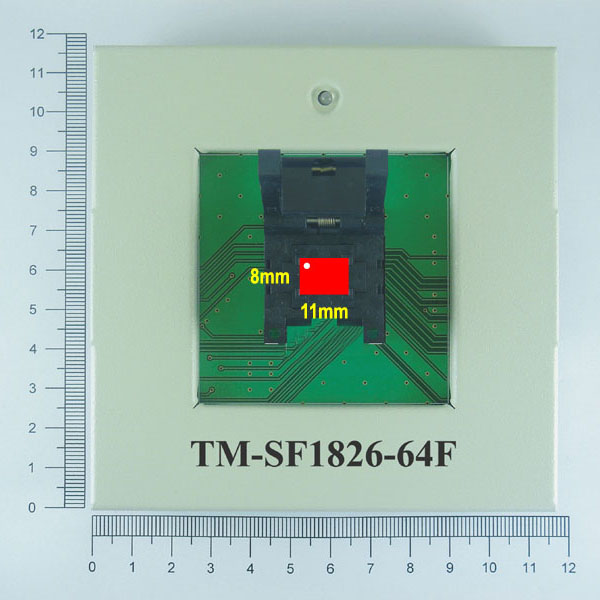

TM-SH1826-64F

64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for Sharp LRS1826

Clam-Shell
Socket

8mm x 11mm
Pitch=0.8mm

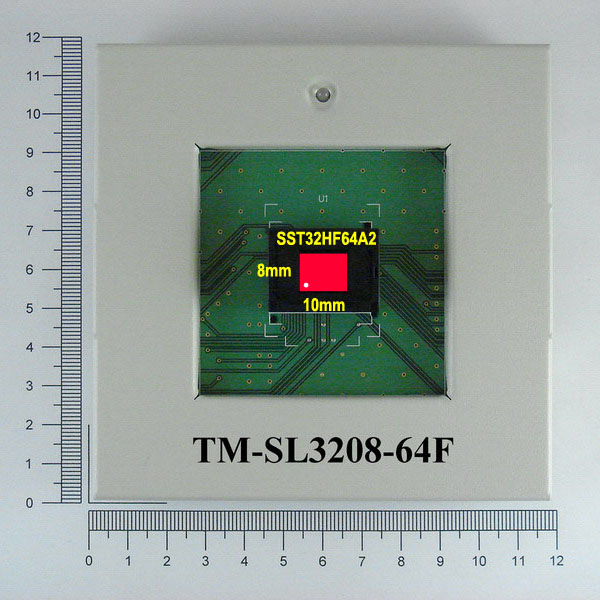

TM-SL3208-64F

64 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for SILICON7 SV4F16XX/32XX

Open-Top
Socket

8mm x 10mm
Pitch=0.8mm

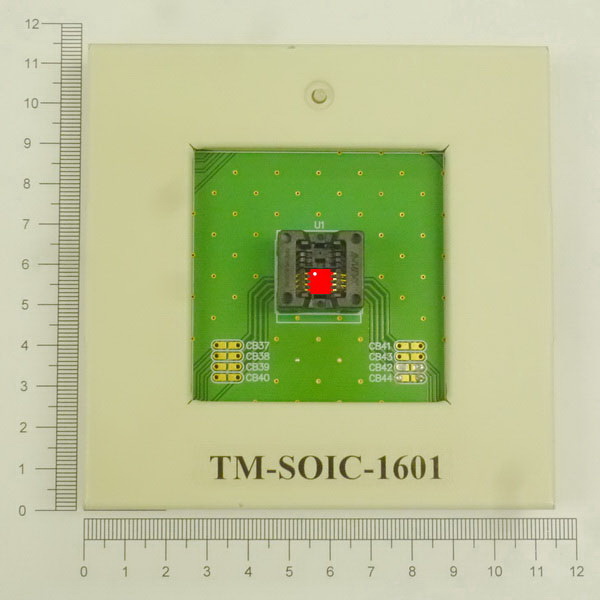

TM-SOIC-1601

16 pin SOIC (Body Width 150mil, Pitch 1.27mm) adapter modules for Macronix MX25L1605D

Clam-Shell
Socket

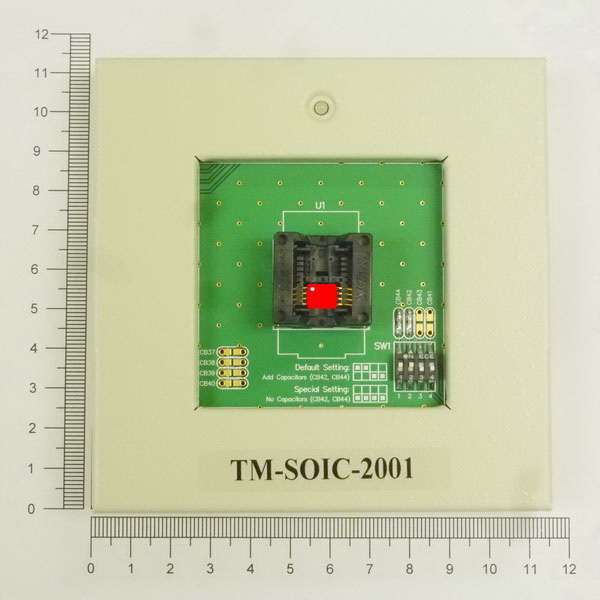

TM-SOIC-2001

20 pin SOIC (Body Width 200mil, Pitch 1.27mm) adapter modules for SST 25VF016B

Clam-Shell
Socket

TM-SOIC-2002

20 pin SOIC (Body Width 200mil, Pitch 1.27mm) adapter modules for Macronix MX/KH25L3205D ,Winbond W25X32

Clam-Shell
Socket

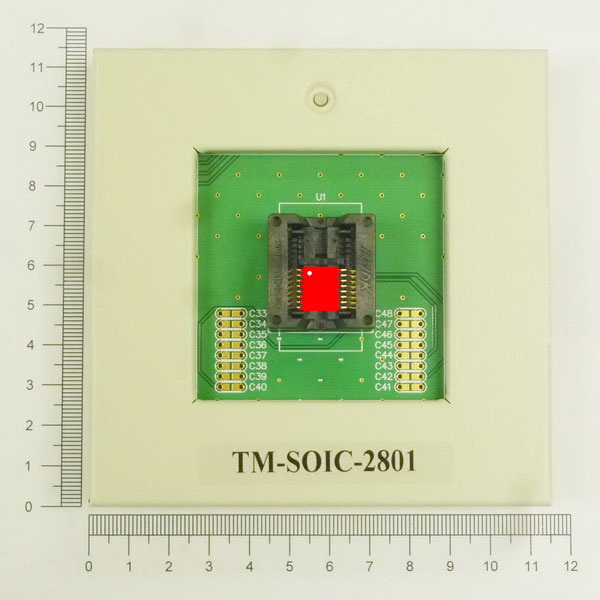

TM-SOIC-2801

28 pin SOIC (Body Width 300mil, Pitch 1.27mm) adapter modules for Spansion S25FL128P / ST M25P128 / Macronix MX25L6405D / SST 25VF016B

Clam-Shell
Socket

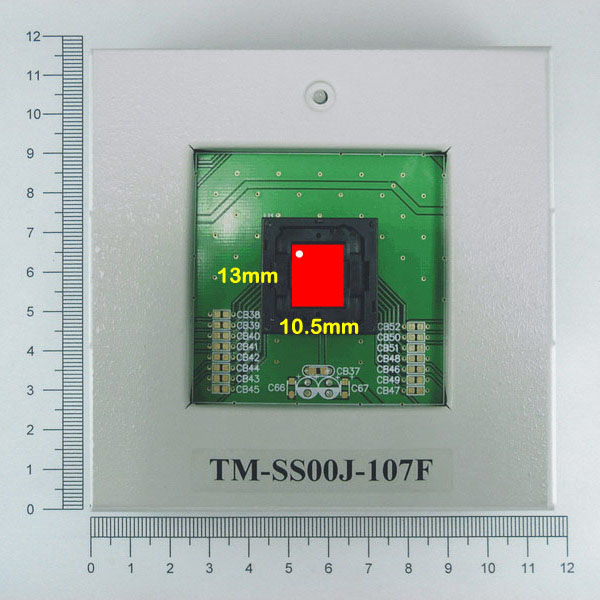

TM-SS00J-107F

107 pin FBGA (10.5mm x 13mm, Pitch 0.8mm) adapter modules for Samsung KAG00J007M

Open-Top
Socket

10.5mm x 13mm
Pitch=0.8mm

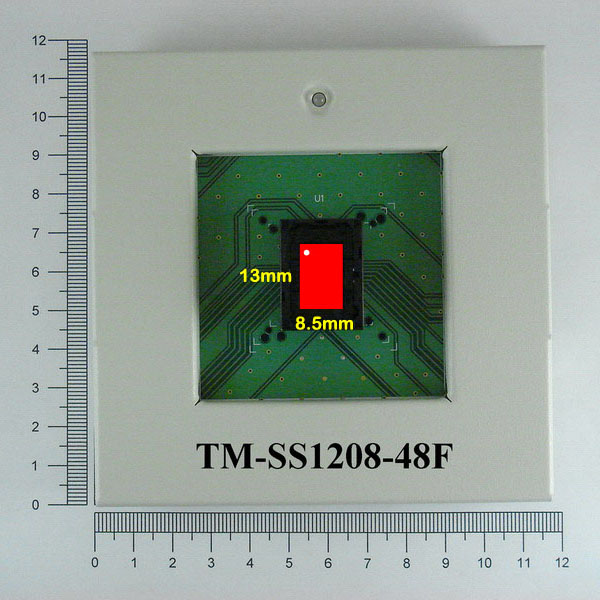

TM-SS1208-48F

48 pin FBGA (8.5mm x 13mm, Pitch 0.8mm) adapter modules for Samsung K9F128R0B/R0C

Open-Top
Socket

8.5mm x 13mm
Pitch=0.8mm

TM-SS1G08-48F

48 pin FBGA (9.5mm x 12mm, Pitch 0.8mm) adapter modules for Samsung K9F1G08R0B

Open-Top
Socket

9.5mm x 12mm
Pitch=0.8mm

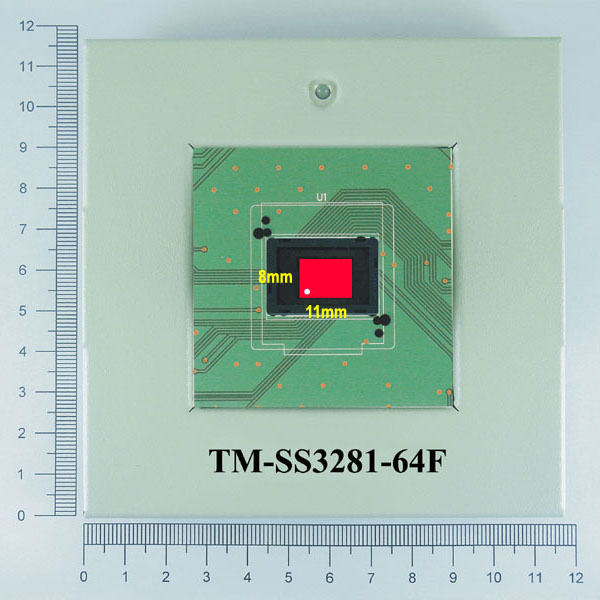

TM-SS3281-64F

64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for Samsung K5A3281CTM

Open-Top
Socket

8mm x 11mm
Pitch=0.8mm

TM-SS5613-137F

137 pin FBGA (10.5mm x 13mm, Pitch 0.8mm) adapter modules for Samsung K5D5613HCM-D090

Open-Top
Socket

10.5mm x 13mm
Pitch=0.8mm

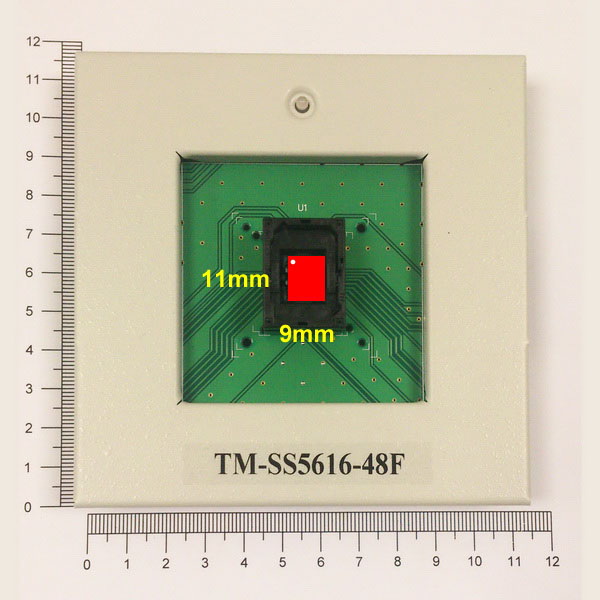

TM-SS5616-48F

48 pin FBGA (9mm x 11mm, Pitch 0.8mm) adapter modules for Samsung K9F5608U0C-HCB0

Open-Top
Socket

9mm x 11mm
Pitch=0.8mm

TM-SST3284-80F

80 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for SST 34HF3284

Clam-Shell
Socket

8mm x 10mm
Pitch=0.8mm

TM-SST800-48F

48 pin FBGA (6mm x 8mm, Pitch 0.8mm) adapter modules for SST 39LF800A

Open-Top
Socket

6mm x 8mm
Pitch=0.8mm

TM-ST01G-48F

48 pin FBGA (8mm x 10mm, Pitch 0.8mm) adapter modules for ST NAND256W3A

Open-Top
Socket

8mm x 10mm
Pitch=0.8mm

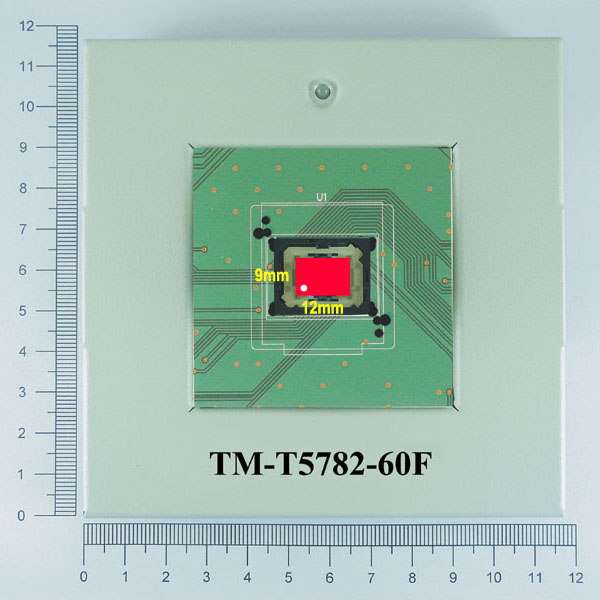

TM-T5782-60F

60 pin FBGA (9mm x 12mm, Pitch 0.8mm) adapter modules for Toshiba TH50VPF5782/83AASB

Open-Top
Socket

9mm x 12mm
Pitch=0.8mm

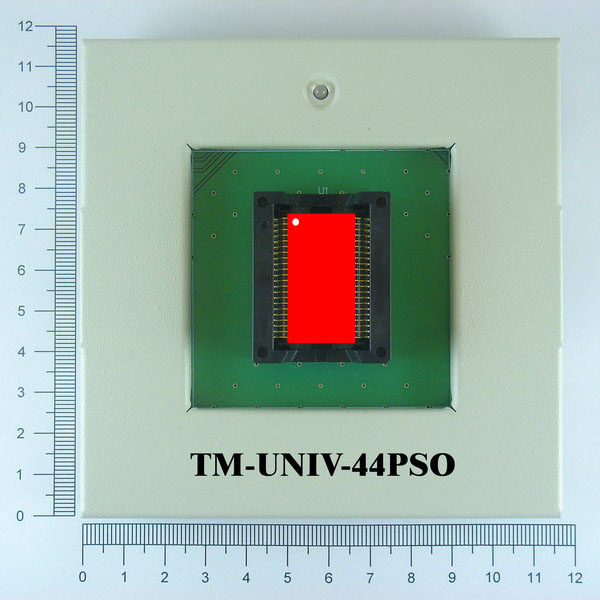

TM-UNIV-44PSO

44 pin PSOP (Body Width 525mil, Pitch 1.27mm) universal adapter modules

Open-Top
Socket

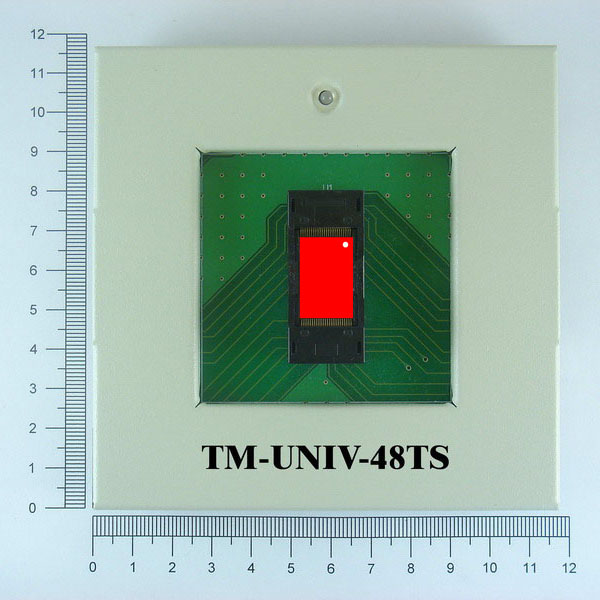

TM-UNIV-48TS

48 pin TSOP (12mm x 20mm, Pitch 0.5mm) universal adapter modules for 48 pin TSOP Type I Package Flash chip

Open-Top
Socket

TM-UNIV-48TS/W

48 pin TSOP (12mm x 14mm, Pitch 0.5mm) universal adapter modules for 48 pin TSOP Type II Package Flash chip

Open-Top
Socket

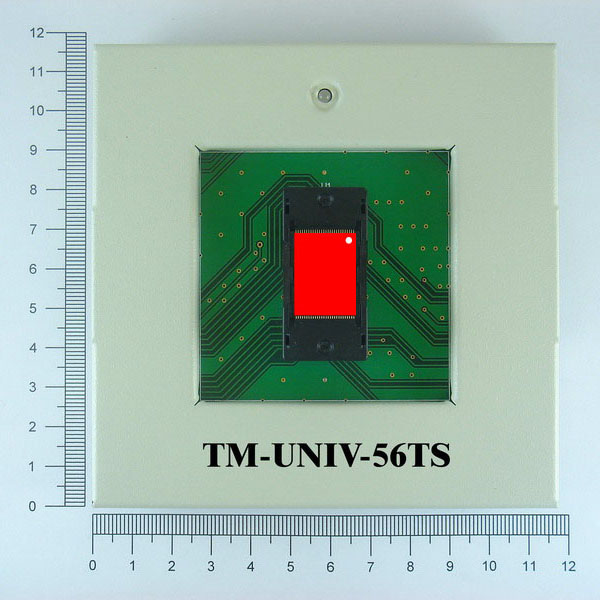

TM-UNIV-56TS

56 pin TSOP (14mm x 20mm, Pitch 0.5mm) universal adapter modules

Open-Top
Socket

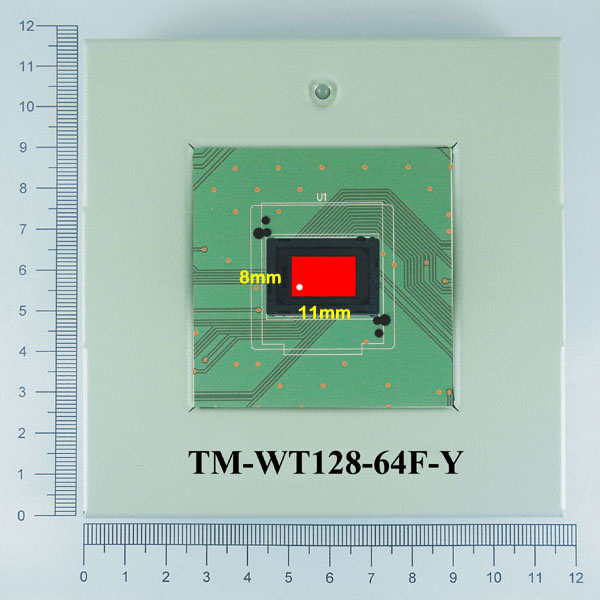

TM-WT128-64F-Y

64 pin FBGA (8mm x 11mm, Pitch 0.8mm) adapter modules for WINBIZ W128F32S (YAMAICHI Socket)

Open-Top
Socket

8mm x 11mm
Pitch=0.8mm
